กลอนประตูดิจิตอล ปลดล็อคลายนิ้วมือ
Fingerprint door Lock Digi-108A/108AB
Digital Door Lock (กลอนประตูดิจิตอล หรือชุดล็อคประตูอิเล็กทรอนิกส์ ) พร้อมบริการติดตั้ง เหมาะสำหรับบ้าน ทาวน์เฮ้าส์ คอนโด และสำนักงานยุคใหม่ เพื่อเพิ่มปลอดภัย สะดวก ล้ำหน้าทันสมัย

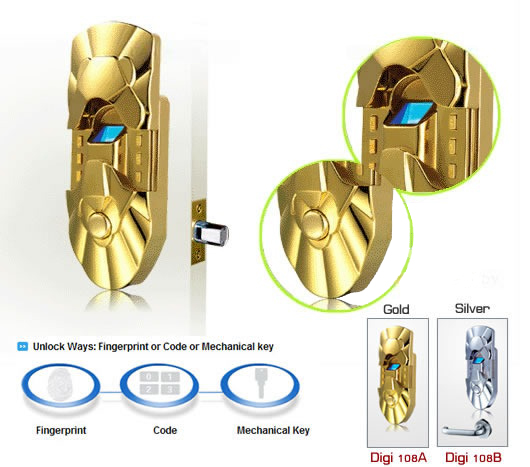

• ปลดล็อกด้วยลายนิ้วมือ + รหัส + กุญแจ
• สินค้าได้มาตรฐานผลิตจากวัสดุคุณภาพ
• บันทึกได้ 150 ลายนิ้วมือ + 78 Password
• ประหยัดไฟใช้ถ่าน 4 ก้อน (1.5V)
• ใช้เวลาสแกนนิ้วนิ้วมือเพียง 1 วินาที
• สินค้าได้รับมาตรฐานจาก ISO 9001, CE, CMA, FCC...
การรับประกัน : รับประกัน 1 ปี
//////////////////////////////////////////////
หมายเหตุ: เป็นราคาเครื่องเปล่า (ลูกค้าติดตั้งเอง) ไม่รวมค่าติดตั้ง
- ค่าติดตั้งและอบรมการใช้งาน กรุงเทพฯและเขตปริมณฑล จุดละ 2,000 บาท
- จ่ายเงิน 100 % หลังติดตั้งเสร็จ
- รับประกันสินค้า 1 ปี (ไม่รวม Onsite Service)
- ติดตั้งต่างจังหวัด คิดค่าเดินทางเพิ่มตามระยะทาง (กรุณาโทรสอบถาม)
Note:price not including installation.
- Setup and training applications. Bangkok and its vicinity at 2,000 THB /point
(LAN wiring does not exceed 15 meters, not including the ceiling of the casing pipe duck Flex).
- 100% payment after installation.
- 1-year warranty. (not include Onsite Service)
- Install other the provinces. Charge according to distance traveled. (Please call).
//////////////////////////////////////////////
หมายเหตุ: เป็นราคาเครื่องเปล่า (ลูกค้าติดตั้งเอง) ไม่รวมค่าติดตั้ง
- ค่าติดตั้งและอบรมการใช้งาน กรุงเทพฯและเขตปริมณฑล จุดละ 2,000 บาท
- จ่ายเงิน 100 % หลังติดตั้งเสร็จ
- รับประกันสินค้า 1 ปี (ไม่รวม Onsite Service)
- ติดตั้งต่างจังหวัด คิดค่าเดินทางเพิ่มตามระยะทาง (กรุณาโทรสอบถาม)
Note:price not including installation.
- Setup and training applications. Bangkok and its vicinity at 2,000 THB /point
(LAN wiring does not exceed 15 meters, not including the ceiling of the casing pipe duck Flex).
- 100% payment after installation.
- 1-year warranty. (not include Onsite Service)
- Install other the provinces. Charge according to distance traveled. (Please call).
//////////////////////////////////////////////
Features
1. Suitable for unprofessional user to use in home or office. | |
2. Single-latch deadbolt lock | |
3. Unlocking ways: fingerprint, password and mechanical key. | |
4. Fingerprint user capacity 150 and password capacity 78. | |
5. Without handle, adjustable for both left-hand and right-hand doors. | |
6. In installation, just use the existing knob lock hole. No need to open the other holes. | |
7. American standard cylinder is selected. When the mechanical keys are missing, the user can replace the cylinder by themselves. | |
8. The fired user can be deleted individually without any affection the normal application of the lock by the other users. | |
9. A special hood is adopted to protect the fingerprint reader which is the most important part of the fingerprint door lock. | |
10. Just need to pull up the hood and put the fingerprint on the reader to open the door. No need to input the passwords by pressing the several buttons of the keypad |
Technical Specification
Item# | Description | Technical Parameters |
1 | Sensor | Bright background,for totally resolving the issue of remaining fingerprints |
2 | Resolution factor | 560 dpi |
3 | Sensor resistance to destruction | 4H pencil 20cm constant impact for 1000 times resulting in no destruction |
4 | Startup time | ?1s |
5 | Contrast | 1:N |
6 | FRR | Less than or equal to 1%(≤1%) |
7 | FAR | Less than or equal to 0.0001%(≤0.0001%) |
8 | Angle of finger application | ±60° |
9 | Fingerprint registration module | One time of registration producing one module |
10 | Fingerprint update | Fully automatic update technology |
11 | ingerprint template storage | Automatic storage of fingerprint template when batteries are changed |
12 | Max figerprint capacity | 150 fingerprints |
13 | Light interference | Protection against direct sunshine |
14 | Collector | Hard glass,nano-treated surface,extremely resistant to friction |
15 | Static power consumption | Less than 30uA |
16 | Dynamic power consumption | Working current between 150-300mA |
17 | Working voltage | Intemational standard batteries,4*1.5V alkaline batteries,DC6V |
18 | Service life of batteries | About 12 month in normal cases |
19 | Power supply | Batteries,plus extemal power supply |
20 | Password capacity | 78 |
21 | Spare voltage for working voltage | 9V |
22 | Waming voltage | 4.8V |
23 | Electrostatic resistance | ?15000V |
24 | Working temperature for fingerprint | -20??60? |
25 | Working temperature for keypad | -30??70? |
26 | Working humidity | 10%-97% |
27 | Storage temperature | -30??70? |
28 | Password setting | Random combination |
29 | password length | 8 digits |
30 | Spare power supply for working voltage | 9V |
31 | Area of collection | 18.2mm(L)X16mm(W) |
* รับประกันสินค้า 1 ปี
ยี่ห้อ (Brand) | OEM |
---|---|
รุ่น (Model) | Digi-108A/108AB |
วิธีใช้งาน | - |
หมวดหมู่ | อุปกรณ์ด้านความปลอดภัย |
หมวดหมู่ย่อย 1 | Digital Door Lock (ประตูดิจิตอล) |
หมวดหมู่ย่อย 2 | |
ขนาดพัสุด (Package size) | - |
น้ำหนัก (Weight) | - |
